ESR
ESR

ESR

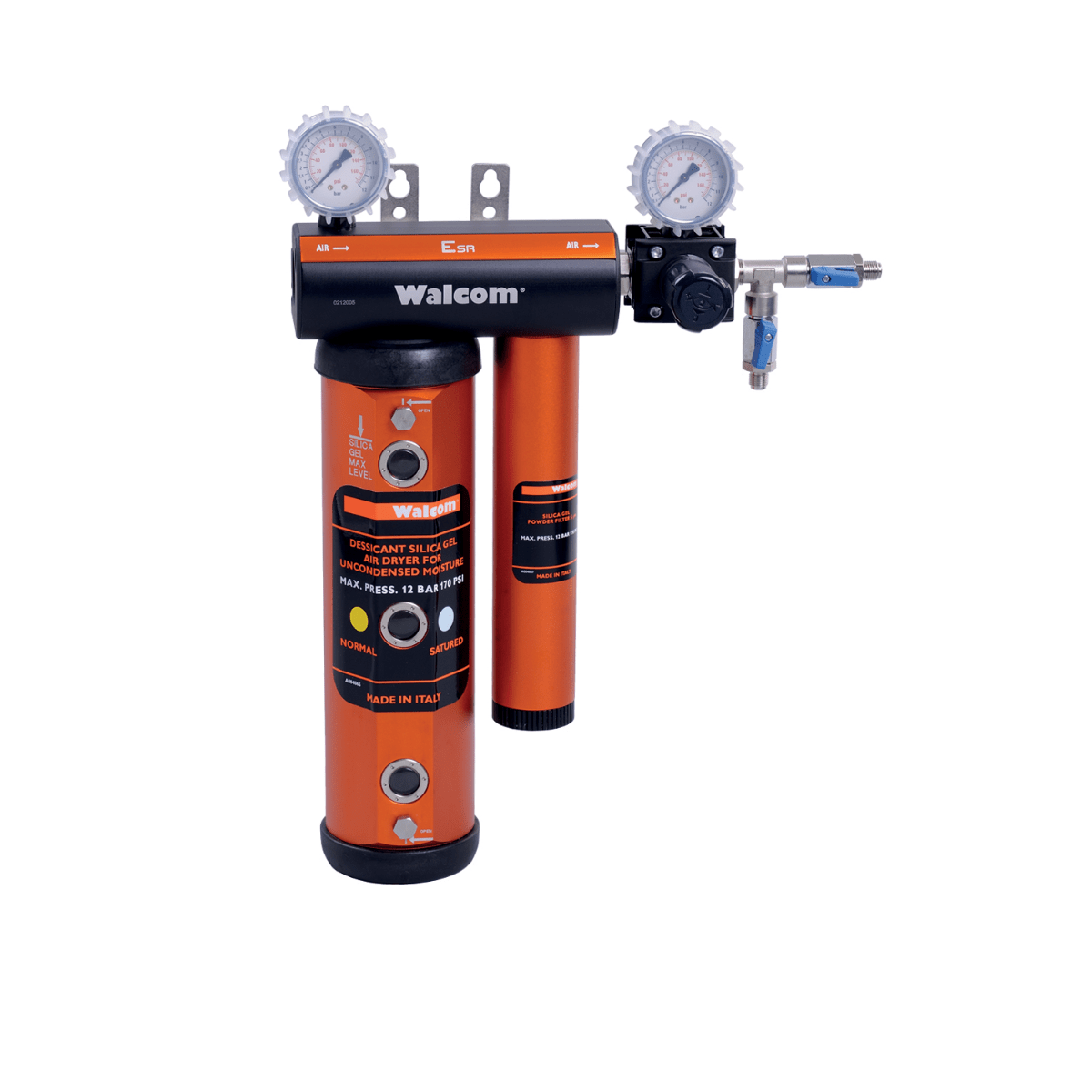

Silica drying module for the elimination of residual humidity from compressed air, to be used combined with an air pre-filtering unit in the painting booth. Equipped with a light that signals the saturation of the silica with the possibility of replacing or regenerating it (4 hours at 120° C.)
SKU: 60129/11
Availability: Many In Stock
$1,145.00
$1,145.00
Please hurry! Only 1999 left in stock
Subtotal: $1,145.00

Free Shipping

Free standard shipping on orders over $200

ESR

ESR

$1,145.00
ESR

ESR

$1,145.00
Description
Description
x
Silica drying module for the elimination of residual humidity from compressed air, to be used combined with an air pre-filtering unit in the painting booth. Equipped with a light that signals the saturation of the silica with the possibility of replacing or regenerating it (4 hours at 120° C.)
Technical data
Technical data
x
1) Filter eto eliminate dust generated by silica 5 μm
Central body anodized aluminum
Pressure adjuster membrane system and automatic decompression. Provided with an indicator to show saturation of the silica which can be replaced or regenerated.
Air inlet F 3/4”; air outlet: n° 2 from M 1/4”
Filtering power air 5 μm
Operating air pressure 12 bar / 174 psi
Air consumption 1200 l/min to 6 bar / 42 cfm at 87 psi
Weight 6.95 Kg
Downloads
Downloads
x
Product Manual
Thermodry
